The PIGLET Collection

Industry Leading Quality Fittings

Dig Pig offers only the highest quality fittings: premium stainless steel for maximum durability, and budget-friendly carbon steel with an anti-corrosive coating for long-lasting protection against rust and corrosion. Each fitting is crafted for longevity and top performance.

Quick Connect Female SS 1/2 FNPT

Aeroquip/EATON
Burst Pressure:40,000 PSI
Coupling Type: Coupler (female threads)
Temperature Range: -40°C to 121°C (-40°F to 250°F)
Thread Configuration: ½ in – 14 FNPT
Body Size: 1/2 in
Max Working Pressure: 10,000 PSI
Material: Stainless Steel

Quick Connect Male SS 1/2 FNPT

Aeroquip/EATON
Burst Pressure: 40,000 PSI
Coupling Type: Plug/Male
Thread Configuration: ½ in – 14 FNPT
Body Size: ½ in
Max Working Pressure: 10,000 PSI
Material: Stainless Steel

Quick Connect Female 1/2 FNPT

DIXON
Burst Pressure: 30,000 PSI
Coupling Type: Coupler (female threads)
Temperature Range: -40°C to 121°C (-40°F to 250°F)
Thread Configuration: 1/2 in – 14 FNPT
Body Size: 1/2 in
Max Working Pressure: 10,000 PSI
Material: Steel

Quick Connect Male 1/2 FNPT

DIXON
Burst Pressure: 30,000 PSI
Coupling Type: Plug/Male
Thread Configuration: 1/2 in – 14 FNPT
Body Size: 1/2 in
Max Working Pressure: 10,000 PSI
Material: Steel

Quick Connect Female SS 3/8 FNPT

Aeroquip/EATON
Burst Pressure: 40,000 PSI
Coupling Type: Coupler (female threads)
Temperature Range: -40°C to 121°C (-40°F to 250°F)
Thread Configuration: 3/8 in – 18 FNPT
Body Size: 1/2 in
Max Working Pressure: 10,000 PSI
Material: Stainless Steel

Quick Connect Male SS 3/8 FNPT

Aeroquip/EATON
Burst Pressure: 40,000 PSI
Coupling Type: Plug/Male
Thread Configuration: 3/8 in – 18 FNPT
Body Size: 1/2”
Max Working Pressure: 10,000 PSI
Material: Stainless Steel

Quick Connect Female 3/8 FNPT

DIXON
Burst Pressure: 30,000 PSI
Coupling Type: Coupler (female threads)
Temperature Range: -40°C to 121°C (-40°F to 250°F)
Thread Configuration: 3/8 in-18 NPT
Body Size: 1/2 in
Maximum Working Pressure: 10,000 PSI,
Material: Steel

Quick Connect Male 3/8 FNPT

DIXON
Burst Pressure: 30,000 PSI
Coupling Type: Plug/Male
Thread Configuration: 3/8 in-18 NPT
Body Size: 1/2 in
Maximum Working Pressure: 10,000 PSI
Material: Steel

Interchange Data: Water-blast, Parker Series-WB, and Eaton/Aeroquip FD69

We carry all pipe fittings and Quick Connects from 3/8s to 3/4 sizes!

All Dixon and Panama steel/carbon fittings come equipped with an anti-corrosion coating!

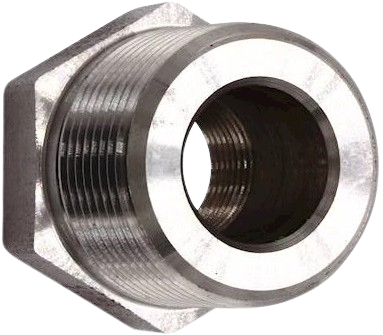

Reducer Bushing - Panama SS 3/4 M to 3/8 F HEX NPT

Connection Type: NPTF X NPTF
Fitting Gender: M X F
Fitting Type: Reducer
T1 Size: 3/4 in -14
T2 Size: 3/8 in -18
Thread Type: SAE,
Material: Stainless Steel

Reducer Bushing - Aeroquip/Eaton 3/4 M to 3/8 F HEX NPT

Connection Type: NPTF X NPTF
Fitting Gender: M X F
Fitting Type: Reducer
T1 Size: 3/4 in -14
T2 Size: 3/8 in -18
Thread Type: SAE
Material: Carbon

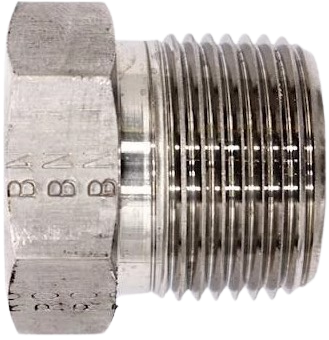

Reducer Bushing - Panama SS 3/4 M to 1/2 F HEX NPT

Connection Type: NPTF X NPTF
Fitting Gender: M X F
Fitting Type: Reducer
T1 Size: 3/4 in -14
T2 Size: 1/2 in -14
Thread Type: SAE
Material: Stainless Steel

Reducer Bushing - Aeroquip/EATON 3/4 M to 1/2 F HEX NPT

Connection Type: NPTF X NPTF
Fitting Gender: M X F
Fitting Type: Reducer
T1 Size: 3/4 in -14
T2 Size: 1/2 in -14
Thread Type: SAE
Material: Carbon

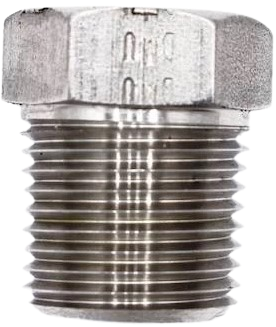

Reducer Bushing- Panama SS 1/2 M to 3/8 F HEX NPT

Connection Type: NPTF X NPTF
Fitting Gender: M X F
Fitting Type: Reducer
T1 Size: 1/2 in -14
T2 Size: 3/8 in -18
Thread Type: SAE
Material: Stainless Steel

Reducer Bushing - Aeroquip/Eaton 1/2 M to 3/8 F HEX NPT

Connection Type: NPTF X NPTF
Fitting Gender: M X F
Fitting Type: Reducer
T1 Size: 1/2 in -14
T2 Size: 3/8 in -18
Thread Type: SAE
Material: Carbon

90 Degree Elbow - Panama SS 1/2 M x1/2 M NPT

Connection Type: NPTF X NPTF
Fitting Gender: M X M,
Fitting Type: 90
T1 Size: 1/2 in -14
T2 Size: 1/2 in -14
Thread Type: SAE
Material: Stainless Steel

90 Degree Elbow - Aeroquip/Eaton 1/2 M x 1/2 M NPT

Connection Type: NPTF X NPTF
Fitting Gender: M X M
Fitting Type: 90
T1 Size: 1/2 in -14
T2 Size: 1/2 in -14
Thread Type: Sae
Material: Carbon

90 Degree Elbow - Panama SS 3/8 M x 3/8 M NPT

Connection Type: NPTF X NPTF
Fitting Gender: M X M
Fitting Type: 90
T1 Size: 3/8 in -18
T2 Size: 3/8 in -18
Thread Type: SAE
Material: Stainless Steel

90 Degree Elbow - Aeroquip/Eaton 3/8 M x 3/8 M NPT

Connection Type: NPTF X NPTF
Fitting Gender: M X M
Fitting Type: 90
T1 Size: 3/8 in -18
T2 Size: 3/8 in -18
Thread Type: SAE
Material: Carbon

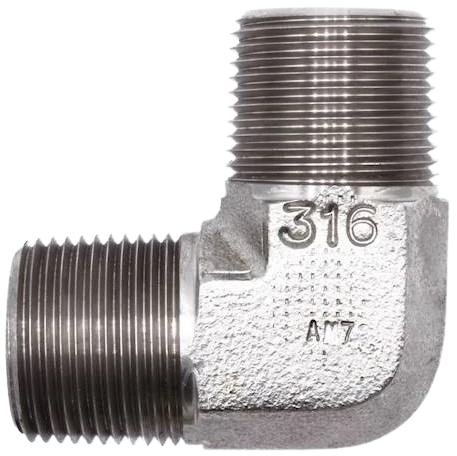

90 Degree Elbow - Panama SS 3/4 M x 3/4 M NPT
